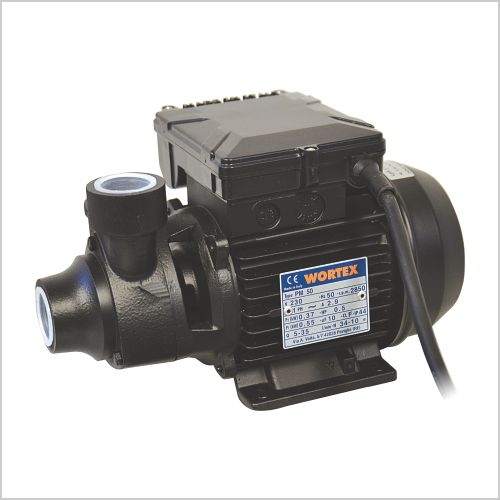

PM

Volumetric Pumps

PM50          PM80


OPERATING CONDITIONS
– Liquid temperature up to 60°C
– Ambient temperature up to 40°C
– Total suction lift up to 7 mt.
– Continuous duty
MOTOR
– Two-Pole induction motor (n = 2850 r.p.m.)
– Insulation Class F
– Protection IP 44
MATERIALS
– Pump body Cast Iron
– Motor Support Cast Iron
– Pump body cover Brass (FM)
– Impeller Brass
– Shaft with rotor Stainless/Steel
– Mechanical seal Carbon/Ceramic
