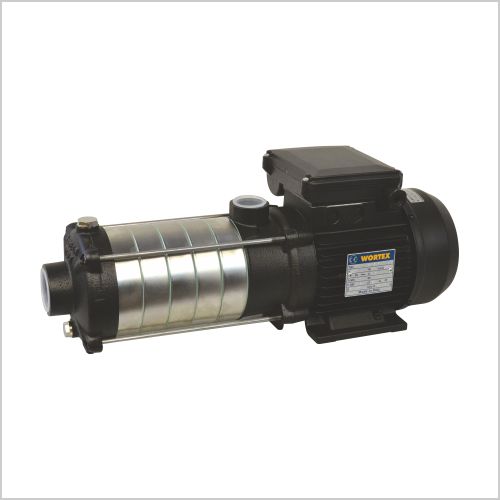

MULTI-GX

Horizontal Multistage Pumps

MULTI GX4-6


OPERATING CONDITIONS
– Liquid temperature up to 35°C
– Ambient temperature up to 40°C
– Total suction lift up to 7 mt.
– Continuous duty
MOTOR
– Two-Pole induction motor(n = 2850 min-1)
– Insulation Class F
– Protection IP 55
MATERIALS
– Pump body Cast: Iron
– Motor support Cast: Iron
– Impeller: Stainless Steel
– Diffusers: Stainless Steel
– Shaft with rotor: Stainless Steel
– Mechanical seal: Ceramic/Graphite
