MJX

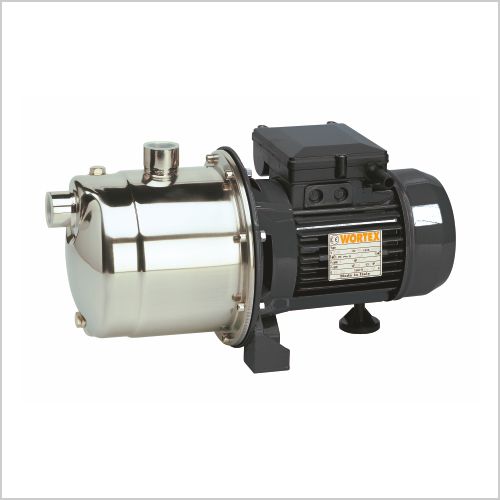

Single Impeller Centrifugal Pumps

MJX135


OPERATING CONDITIONS
– Liquid temperature up to 35°C
– Ambient temperature up to 40°C
– Total suction lift up to 8 mt.
– Continuous duty
MOTOR
– Two-Pole induction motor(n = 2850 min-1)
– Insulation Class F
– Protection IP 44
MATERIALS
– Pump body: Stainless Steel
– Motor Support: Aluminium
– Impeller: Noryl
– Diffuser: Noryl
– Pump flange: Stainless Steel
– Shaft with rotor: Stainless Steel
– Mechanical seal: Carbon/Ceramic
