CNB

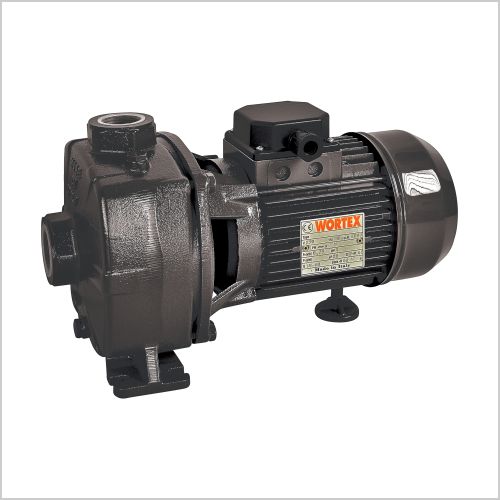

Twin Impeller Centrifugal Pumps

CNB150A       CNB200       CNB300       CNBT300


OPERATING CONDITIONS
— Liquid temperature up to 35°C
– Ambient temperature up to 40°C
– Total suction lift up to 9 mt.
– Continuous duty
MOTORS
– Two-Pole induction motor(n = 2850 min-1)
– Insulation Class F
– Protection IP 44
MATERIALS
– Pump body Cast: Iron
– Motor Support Cast: Iron
– Impeller: Noryl
– Diffuser: Noryl
– Shaft with rotor: Stainless Steel
– Mechanical seal: Carbon/Ceramic
