CH

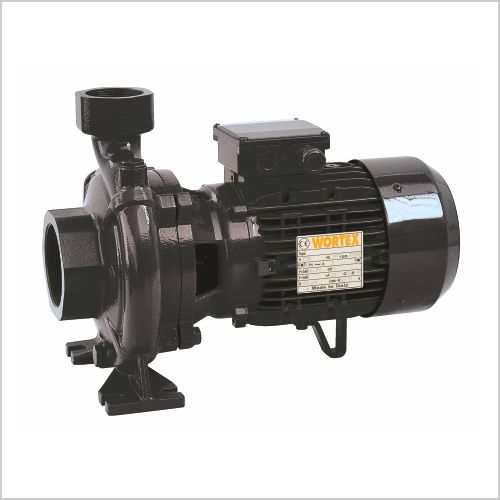

Single Impeller Centrifugal Pumps

CH200          CH300


OPERATING CONDITIONS
– Liquid temperature up to 90°C
– Ambient temperature up to 40°C
– Total suction lift up to 7 mt.
– Continuous duty
MOTOR
– Two-Pole induction motor(n = 2850 min-1)
– Insulation Class F
– Protection IP 55
– IEC 34 construction standard
MATERIALS
– Pump body Cast: Iron
– Motor Support Cast Iron
– Impeller Cast: Iron
– Shaft with rotor: Stainless Steel
– Mechanical seal: Ceramic/Graphite
