CF

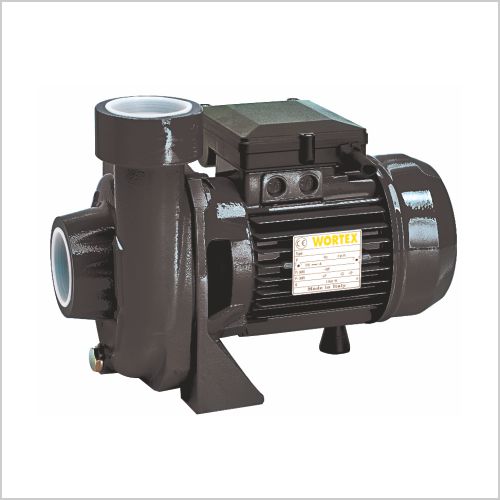

Centrifugal Irrigation Pumps

CF100         CF150


OPERATING CONDITIONS
– Liquid temperature up to 60°C
– Ambient temperature up to 40°C
– Total suction lift up to 7 mt.
– Continuous duty
MOTOR
– Two-Pole induction motor(n = 2850 min-1)
– Insulation Class F
– Protection IP 44
MATERIALS
– Pump body Cast: Iron
– Motor Support Cast: Iron
– Impeller Cast: Iron
– Shaft with rotor: Stainless Steel
– Mechanical seal: Carbon/Ceramic
