EUROPRESS

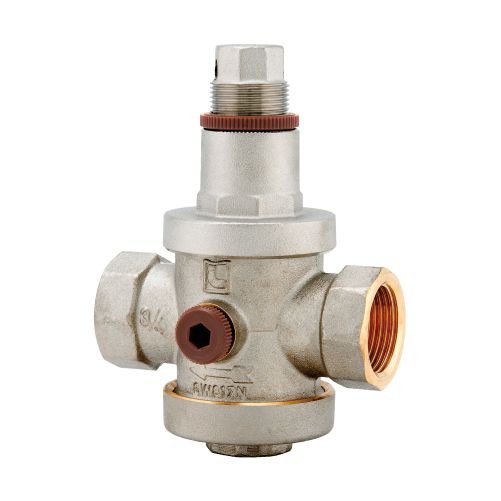

Pressure Reducing Valve

143

female threads.
Body in nickel-plated brass.
Minimum and maximum working temperatures: 0°C, 80°C.
Maximum inlet pressure: 25bar.
Outlet pressure can be adjusted between 1 and 6 bar.
Factory preadjustment 3 bar.
Outlet pressure gauge connection 1/4” on both sides.
Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
